Rapid Development of Architecture Plugins

Drop hello.py in your Binja plugin directory:

print('Hello, world!')

Yes, that's it. Observe "Hello, world!" in your Log window after running Binja. There are more official guidelines, and a sample plugin, but this is all that's needed.

Now establish that you can call some Binja api's:

from binaryninja.log import log_info
log_info("Hello, world!")

From this point, your code can declare to Binja that it's a PluginCommand or a new BinaryView or even a new Architecture entirely.

This article tackles Architecture, and we choose a small one fit for demonstration: Z80. We tell Binja that we're an architecture by extending the Architecture class:

from binaryninja.architecture import Architecture
class Z80(Architecture):
  name = 'Z80'
Z80.register()

In a python session with Binja imported, try:

>>> list(binaryninja.Architecture)
[<arch: aarch64>, <arch: armv7>, <arch: thumb2>, <arch: armv7eb>, <arch: thumb2eb>, <arch: mipsel32>, <arch: mips32>, <arch: ppc>, <arch: ppc_le>, <arch: x86_16>, <arch: x86>, <arch: x86_64>, <arch: Z80>]

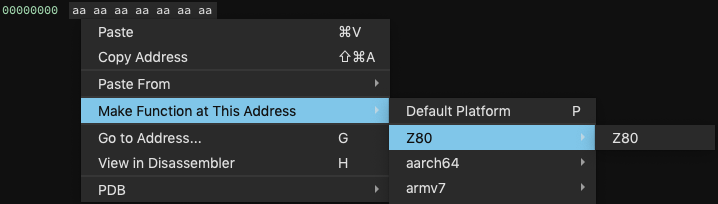

Or, in the Binja UI, create a new buffer File -> New -> Binary Data and a function, and you should see:

Checkpoint #1

We have a custom architecture with the name 'Z80'. Hopefully that was quick! See checkpoint #1 for the code so far.

Along with the architecture name, there are other facts about our architecture we can communicate to Binja by setting variables:

class Z80(Architecture):
    name = 'Z80'
    address_size = 2        # 16-bit addresses
    default_int_size = 1    # 1-byte integers
    instr_alignment = 1     # no instruction alignment
    max_instr_length = 3    # maximum length
                            # ...

Registers are a tad more involved. We define a dictionary whose keys are the register names, and whose values are RegisterInfo objects.

Registers that are independent, and not a sub-register of another are called "full width" registers. Otherwise, registers are a subset of the bits in a full width register. Think eax within rax in X86_64.

The RegisterInfo constructor takes the full width register name, the size of the register, and optionally the offset within an enclosing register. For Z80's full width, 2-byte register AF the construction is:

class Z80(Architecture):
  #...
  regs = {
    'AF': RegisterInfo('AF', 2)
  }

This says "Register AF is a subregister of AF and has size 2." Since the subregister relationship points to itself, Binja knows it's a full-width register. In contrast, consider the 1-byte registers A and Flags which are subregisters of AF:

regs = {
    'AF': RegisterInfo('AF', 2),
    'A': RegisterInfo('AF', 1, 1),      # subregister of 'AF', 1-byte, offset 1
    'Flags': RegisterInfo('AF', 0),     # subregister of 'AF', 1-byte, offset 0
}

This says, "Register A is a subregister of AF, has size 1, and is at byte offset 1 from the lsb of AF and register Flags is a subregister of AF, has size 1, and is at byte offset 0 from the lsb of AF."

If there are any registers with the role of stack pointer or link register, we should set them. The former applies to Z80:

    stack_pointer = "SP"

Checkpoint #2

Our Z80 architecture reported its address size, integer size, instruction size, and available registers to Binja! See checkpoint #2 for the code so far.

Setting variables is good for architecture information that doesn't change or has few possible values, but once we want to disassemble, we need to implement callback functions.

Though many callback functions are available for your architecture to service, only three are essential:

• get_instruction_info() - to help Binja draw the control-flow graph
• get_instruction_text() - to disassemble bytes for Binja
• get_instruction_low_level_il() - to lift, but we'll return NOP for now

The first, get_instruction_info(), describes instructions' length and branch behavior by returning an InstructionInfo:

    def get_instruction_info(self, data, addr):
    result = InstructionInfo()
        result.length = 1
    return result

The second, get_instruction_text(), describes the actual text presented to the user per instruction, by returning a list of InstructionTextToken and the instruciton size:

    def get_instruction_text(self, data, addr):
        tokens = [InstructionTextToken(InstructionTextTokenType.TextToken, "HELLO!")]
        return tokens, 1

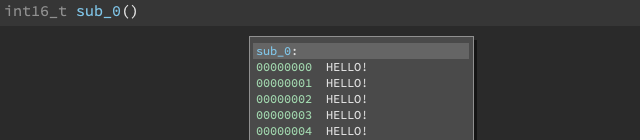

We've told Binja that all bytes disassemble to "HELLO!" and have length 1. Test it on the command line:

>>> binaryninja.Architecture['Z80'].get_instruction_text(b'\xAA', 0)
>>> (['HELLO!'], 1)

Or in the GUI by creating a buffer and a function with architecture Z80:

Checkpoint #3

Our Z80 architecture can now disassemble, though it returns a placeholder for everything. See checkpoint #3 for the code so far.

But how do we get real disassembly in there? We'll find an existing disassembler and piggyback on its results! After pip install skoolkit, I learned it expected memory snapshots of a ZX spectrum game. No problem: our requests can be wrapped to look like that. In skwrapper.py (skoolkit wrapper) there is exposed the very simple disasm(data, addr) function for our architecture to use.

First, we need get_instruction_info() to return the correct size:

    def get_instruction_info(self, data, addr):
        (instrTxt, instrLen) = skwrapper.disasm(data, addr)
        if instrLen == 0:
            return None
        result = InstructionInfo()
        result.length = instrLen
        return result

Next, we need get_instruction_text() to return the correct string:

    def perform_get_instruction_text(self, data, addr):
        (instrTxt, instrLen) = skwrapper.disasm(data, addr)
        tokens = [InstructionTextToken(InstructionTextTokenType.TextToken, instrTxt)]
        return tokens, instrLen

And we can test it with:

>>> binaryninja.Architecture['Z80'].get_instruction_text(b'\x2a\x34\xbc\x1a', 0)
(['LD HL,($C234)'], 3)

Checkpoint #4

We got a disassembler for free from PIP. Now actual Z80 assembly is being returned. See checkpoint #4 for the architecture code, and drop in skwrapper.py alongside in the plugins directory so it can disassemble.

If the disassembly text were broken into types, Binja could do some cool tricks. All registers could be highlighted when clicked. Addresses could be followed when double clicked. Here's how we would split the LD HL,($C234):

What we'll do is parse the string into one of several classes of formats. By looking at premade opcode lists or disassembling every instruction ourselves, we can see that there aren't that many patterns. We can do a decent job splitting on just a few symbols:

atoms = [t for t in re.split(r'([, ()\+])', instrTxt) if t]

The first atom is an InstructionToken type and we add a space if there are operands:

result.append(InstructionTextToken(InstructionTextTokenType.InstructionToken, atoms[0]))
if atoms[1:]:
  result.append(InstructionTextToken(InstructionTextTokenType.TextToken, ' '))

The remaining atoms are operands and are handled on a case-by-case basis. Don't let the long class and enumeration names intimidate you, this is very manageable at just over 10 cases!

for atom in atoms[1:]:
    if not atom or atom == ' ':
        continue
    elif atom == 'C' and atoms[0] in ['CALL','RET']:
        result.append(InstructionTextToken(InstructionTextTokenType.TextToken, atom))
    elif atom in self.reg16_strs or atom in self.reg8_strs:
        result.append(InstructionTextToken(InstructionTextTokenType.RegisterToken, atom))
    elif atom in self.cond_strs:
        result.append(InstructionTextToken(InstructionTextTokenType.TextToken, atom))
    elif atom.startswith == '#':
        result.append(InstructionTextToken(InstructionTextTokenType.IntegerToken, atom))
    elif atom.startswith('$'):
        result.append(InstructionTextToken(InstructionTextTokenType.PossibleAddressToken, atom))
    elif atom.isdigit():
        result.append(InstructionTextToken(InstructionTextTokenType.IntegerToken, atom))
    elif atom == '(':
        result.append(InstructionTextToken(InstructionTextTokenType.BeginMemoryOperandToken, atom))
    elif atom == ')':
        result.append(InstructionTextToken(InstructionTextTokenType.EndMemoryOperandToken, atom))
    elif atom == '+':
        result.append(InstructionTextToken(InstructionTextTokenType.TextToken, atom))
    elif atom == ',':
        result.append(InstructionTextToken(InstructionTextTokenType.OperandSeparatorToken, atom))
    else:
        raise Exception('unfamiliar token: %s from instruction %s' % (tok, instrTxt))

Our command-line test now shows all the tokens we returned:

>>> binaryninja.Architecture['Z80'].get_instruction_text('\x2a\x34\xbc\x1a', 0)
(['LD', ' ', 'HL', ',', '(', '$C234', ')'], 3)

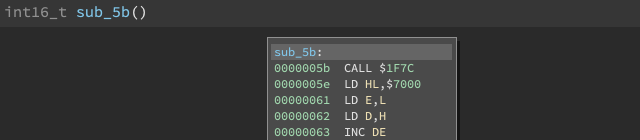

And in the UI, we have:

Checkpoint #5

Our Z80 architecture can now disassemble instructions for real. Parsing strings is inefficient, but we're ok sacrificing runtime speed for development speed at this moment. Write now, learn now, optimize later. See checkpoint #5.

In Binja, you'll see that all instructions are disassembled and presented sequentually. It's all in one block.

To make Binja split blocks properly and find new code to disassemble, we must augment get_instruction_info() with the ability to attach branch information to the returned InstructionInfo:

We are simply helping Binja draw the CFG and locate more code to disassemble. We are not telling Binja the meaning of the instructions; that's saved for lifting.

After some quick searches on Z80 branching, these are the cases I found, as regular expressions:

        rccs = r'(?:C|NC|Z|NZ|M|P|PE|PO)'
        regexes = [ \
            r'^(?:JP|JR) '+rccs+r',\$(.*)$',    # 0: conditional jump       eg: JP PE,#DEAD
            r'^(?:JP|JR) \$(.*)$',              # 1: unconditional jump     eg: JP #DEAD
            r'^(?:JP|JR) \((?:HL|IX|IY)\)$',    # 2: unconditional indirect eg: JP (IX)
            r'^DJNZ \$(.*)$',                   # 3: dec, jump if not zero  eg: DJNZ #DEAD
            r'^CALL '+rccs+r',\$(.*)$',         # 4: conditional call       eg: CALL PE,#DEAD
            r'^CALL \$(.*)$',                   # 5: unconditional call     eg: CALL #DEAD
            r'^RET '+rccs+'$',                  # 6: conditional return
            r'^(?:RET|RETN|RETI)$',             # 7: return, return (nmi), return (interrupt)
        ]

All regexes are tested against the string returned from disassembly. Depending on which one applies, we add_branch() the appropriate BranchType:

            if i==0 or i==3:
                dest = int(m.group(1), 16)
                result.add_branch(BranchType.TrueBranch, dest)
                result.add_branch(BranchType.FalseBranch, addr + instrLen)
                pass
            elif i==1:
                dest = int(m.group(1), 16)
                result.add_branch(BranchType.UnconditionalBranch, dest)
                pass
            elif i==2:
                dest = int(m.group(1), 16)
                result.add_branch(BranchType.IndirectBranch)
                pass
            elif i==4 or i==5:
                dest = int(m.group(1), 16)
                result.add_branch(BranchType.CallDestination, dest)
                pass
            elif i==6:
                pass # conditional returns don't end block
            elif i==7:
                result.add_branch(BranchType.FunctionReturn)

In the Binja UI you should see:

Checkpoint #6

We now have beautiful control flow graphs from Binja because of the help we returned from the newly enhanced get_instruction_info(). See checkpoint #6.

How do we get Binja to use our architecture when a Z80 file is opened? By implementing a BinaryView for each filetype. As an example, we'll do a ColecoVision ROM:

from binaryninja.binaryview import BinaryView;
class ColView(BinaryView):
    name = 'Coleco'
    long_name = 'ColecoVision ROM'
ColView.register()

When opening a new binary, Binja visits all registered views and asks if that view applies by calling its is_valid_for_data() function. Check my ColecoVision notes to see that they start with "\xAA\x55" or "\x55\xAA":

    @classmethod
    def is_valid_for_data(self, data):
    header = data.read(0,0x24)
        return header[0:2] in [b"\xAA\x55", b"\x55\xAA"];

Two other functions: perform_is_executable() and perform_get_entry_point() do the roles indicated by their names:

    def perform_is_executable(self):
        return True

    def perform_get_entry_point(self):
        return unpack('<H', self.data[0xA:0xA+2])[0]

The BinaryView can also place parts of the file in memory. From the ColecoVision notes, we know ROMs are mapped to 0x8000. Using add_auto_segment() we place it in one call:

self.add_auto_segment(0x8000, 0x4000, 0, 0x4000, SegmentFlag.SegmentReadable|SegmentFlag.SegmentExecutable)

Checkpoint #7

Now we can open up ColecoVision ROMS and in Binja and our Z80 architecture is loaded and used automatically. Test it out on this BurgerTime ROM.

We're up to three separate files now. It's time to graduate to a python module directory structure in the plugins folder:

• Z80/Z80Arch.py
• Z80/ColecoView.py
• Z80/skwrapper.py
• Z80/__init__.py

See checkpoint #7.

Recap

The article's goal was to get you running as fast as possible, but at the cost of much explanation.

Writing architectures will feel more natural if you understand Binja is trying to do. It's trying to have a concise interface by which any new architecture can be described, allowing Binja to present disassembly and perform analysis:

When Binja is faced with a buffer of bytes and an associated architecture, it's first use of its senses is to call get_instruction_info() and see instruction size and whether branching is present. It caches the results, and divides the buffer into basic blocks. Now the instruction sized bytes within each block can be sent to get_instruction_text() to display text per instruction within a block.

It's very important to understand the distinction between the "realms" get_instruction_info() and get_instruction_text() live in versus what get_instruction_low_level_il() lives in. The former just help guide Binja through finding the presenting instructions to users. The latter enables Binja to analyze code by translating the meaning and behavior of the instructions into Binja's tongue: low-level intermediate language.

Architectures can be invoked via the command line, or explicitly selected when creating a function. But they're very convenient when attached to binary file types. That's when BinaryView came in. We implemented a BinaryView for ColecoVision ROMs, but we might also want a BinaryView for TI-calculator ROMs or Gameboy ROMs.

Conclusion

I hope this article convinced you that architecture writing doesn't have to be a slog. Part 2 will cover lifting, which will enable Binja to perform its various analyses on code from your architecture.

Don't be afraid to use any of the checkpoint codes as starting points for your own work. There's a PowerPC architecture that outsources disassembly to capstone. And an NES architecture that's self contained.
